Liquid Cooling for Electric Vehicles

Thermal Challenges for Electric Vehicles

One of the most significant barriers to furthering advancements in EVs is the heat produced by semiconductors, motors, batteries and more. It can create significant additional risks and limit the efficiency of traction, power and computing systems.

Battery Thermal Management

Waste heat from a battery’s normal operation, as well as its environmental temperature, can have several effects on its efficiency. Increasing temperatures decrease the voltage differential between a battery’s anode and cathode, decreasing its power output.  Performance degrades along with the battery’s working life, causing poor power density and reduced acceleration capabilities. Extremely high temperatures can lead to thermal runaway, a self-heating chain reaction that releases more and more heat into the system.

Conversely, decreasing temperatures slow the chemical reactions that produce its potential energy, reducing efficiency and power. Low ambient temperatures also increase charging time and discharge rate and reduce storage capacity, a physical product of ion transfer that has kept jumper cable companies in business for a century.

Poor thermal management of batteries, whether resulting in either excessively high or low temperatures, can thus decrease battery capacity and performance and even increase combustion, safety and reliability risks. Liquid cooling systems for EV batteries is often utilized to control temperatures and keep them within their optimal operating range.

Thermal Management for Inverters and Traction Drives

Inverters, or Variable Frequency Drives, convert the DC power from batteries into the AC power used by the motors in Traction Drive systems. Inverters face thermal management issues as well–their power densities can vary based on thermal hot spots and heat spreading patterns. Because of the high power levels needed for the motors to move the vehicle, they emit a high level of waste heat and are often liquid-cooled to maintain optimal operating temperatures. They have various design configurations, all of which are susceptible to diminished performance due to thermal excursions.

Inverters are often built with Insulated-Gate Bipolar Transistors (IGBTs), a common type of silicon (Si) or silicon-carbide (SiC) semiconductor that offers exceptional cooling performance but also generates waste heat through the inefficiencies in transistor switching. Liquid cooling for IGBTs can reduce junction temperatures and help maintain operational temperatures windows, improving inverter performance, lifetime and power density.

Liquid Cooling Solutions for Electric Vehicles

The power levels, heat flux, and rugged operating environments of electric vehicles make them difficult to thermally manage. Traditional heat sinks will often not work on these power components due to the lower heat carrying capacity (specific heat) of air. In addition, vehicle efficiency drives a quest toward highly effective, lightweight heat transfer solutions with minimal footprint.

Traditional Liquid Cooling Methods

A common solution to thermal management of traction drives and inverters is liquid cooling. Using a liquid coolant to remove waste heat can be more effective than air due to its increased heat capacity and ability to regulate fluid flow to meet the heat removal need. Liquid cooling can be achieved of through various designs that put the IGBT dies in contact with the coolant, and its efficiency is often determined by the efficiencies of the heat transfer mechanism, called cold plates or heat sinks. IGBTs often use swaged-tube aluminum cold plates, pin-fin/skived-fin cold plates, or microchannel cold plates for higher energy efficiency. Some cold plate solutions are more integrated into IGBT module designs, whereas others are attached externally within the traction drive or inverter assembly. The effectiveness of a liquid cold plate solution depends significantly on its internal structure, internal surface area and fluid channel design.

Microchannel Liquid Cooling

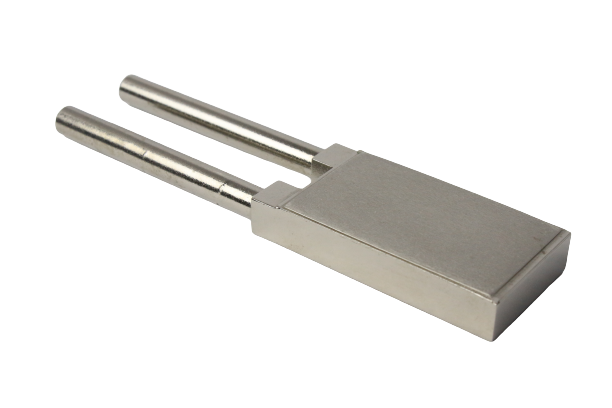

Microchannel liquid cooling is informed by heat transfer physics, namely that the thermal resistance of a fluid channel is directly proportional to flow channel width. The smaller the channel, the better the heat transfer. For 30 years, Mikros has specialized in highly effective microchannel cold plates for high power applications like inverters and traction drives for electric vehicles. Our Normal Flow™ microchannel matrices can dissipate over 1kW/cm2 with temperature increases as low as 20℃ and a pressure drop of just 3 psi. They are optimized for high heat flux applications and feature the lowest thermal resistance and pressure drops available. Mikros integrates microchannel cooling into a wide array of form factors, providing unparalleled thermal performance in a fraction of the weight and volume of traditional designs.

Integrating a Mikros microchannel cold plate into your electric vehicle traction drive design can help maximize the power capacity of IGBTs and keep operating temperatures low with minimal cost, increasing your overall energy budget and vehicle efficiency.
